Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Bahan: | baja tahan karat 304,316,316L,430, 310s, 904L, dll | Diameter Kawat: | 1-24 mesh (0,5-4,0mm adalah ukuran stok) |
|---|---|---|---|
| Bukaan (jarak bersih): | 0.5-50mm adalah ukuran saham, lain dapat disesuaikan | Lebar: | hingga 6m |
| Panjang: | customerized (misalnya, 10m,20m,30m ) - tidak terlalu berat, mudah dibawa | Aplikasi: | saringan, makanan, industri filter, rumah sakit, pagar, dll |
| Moq: | 1 m2 | ||
| Menyoroti: | Jaring kawat tenunan persegi panjang yang terkelupas,Stainless Steel Crimped Wire Mesh Screen,6m lebar Wire Mesh Crimped |
||

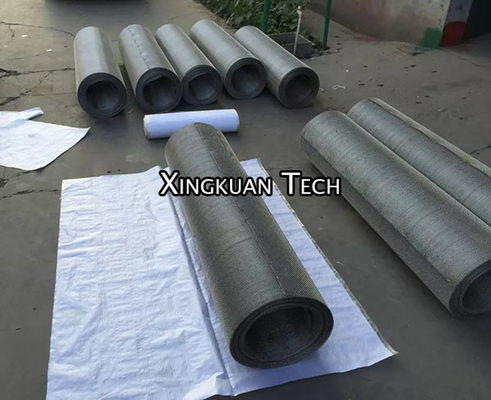

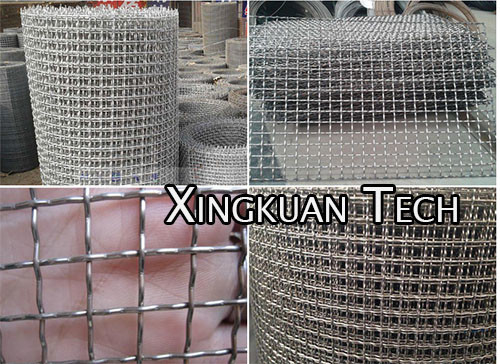

Layar mesh kawat berkerut bahan stainless steel dengan stok besar
| Bagian dari Daftar Spesifikasi | |||
| Wire Gauge (BWG) | Ukuran aperture (mm) | Wire Dia. | Ukuran aperture (mm) |
| 8 | 30 | 4.06 | 6.00 |
| 8 | 25 | 4.06 | 7.00 |
| 8 | 20 | 4.06 | 8.00 |
| 8 | 15 | 4.06 | 1.00 |
| 8 | 12 | 4.06 | 13.000 |
| 8 | 10 | 4.06 | 15.000 |
| 10 | 30 | 3.25 | 4.00 |
| 10 | 25 | 3.25 | 4.70 |
| 10 | 20 | 3.25 | 5.80 |
| 10 | 15 | 3.25 | 7.40 |
| 10 | 10 | 3.25 | 10.000 |
| 12 | 30 | 2.64 | 2.70 |
| 12 | 12 | 2.64 | 3.20 |
| 12 | 20 | 2.64 | 3.90 |
| 12 | 15 | 2.64 | 5.00 |
| 12 | 10 | 2.64 | 7.00 |
| 14 | 20 | 2.03 | 2.38 |
| 14 | 15 | 2.03 | 3.10 |
| 14 | 12 | 2.03 | 3.70 |
| 14 | 10 | 2.03 | 4.35 |
| 14 | 8 | 2.03 | 5.22 |
| 14 | 6 | 2.03 | 6.52 |
| 14 | 4 | 2.03 | 8.68 |
| 14 | 3 | 2.03 | 10.400 |
| 16 | 15 | 1.63 | 2.03 |
| 16 | 10 | 1.63 | 2.90 |
| 16 | 8 | 1.63 | 3.50 |
| 16 | 6 | 1.63 | 4.40 |
| 16 | 4 | 1.63 | 5.99 |
| 18 | 12 | 1.22 | 1.43 |
| 18 | 10 | 1.22 | 1.68 |
| 18 | 8 | 1.22 | 1.05 |
| 18 | 6 | 1.22 | 2.62 |
| 18 | 4 | 1.22 | 3.62 |
| 18 | 3 | 1.22 | 4.48 |
| 20 | 12 | 0.91 | 0.82 |
| 20 | 10 | 0.91 | 0.96 |
| 20 | 8 | 0.91 | 1.18 |
| 20 | 5 | 0.91 | 1.78 |
| 20 | 4 | 0.91 | 2.15 |
| 20 | 3 | 0.91 | 2.69 |
